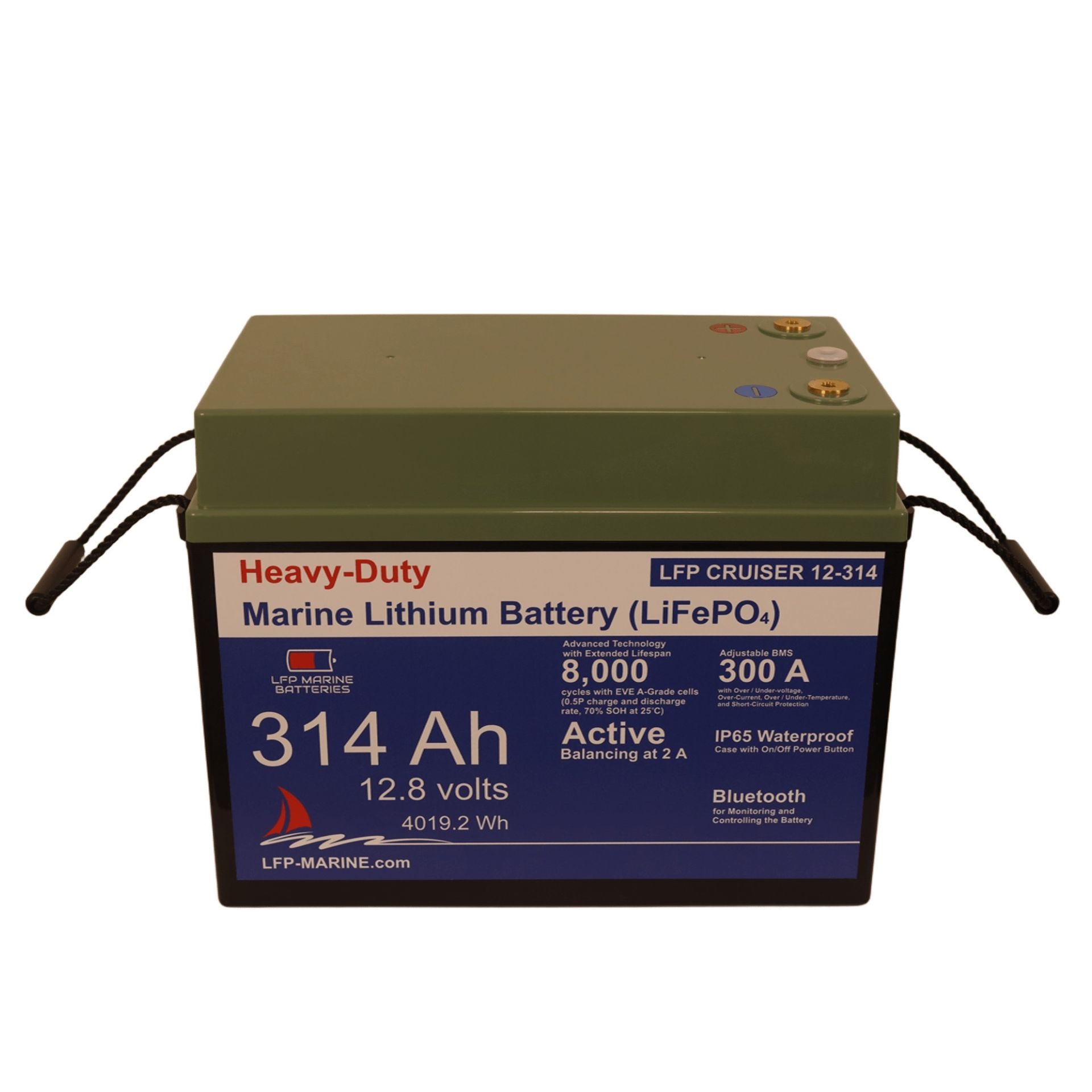

Marine LFP Battery CRUISER 12-314-WITHOUT FUSE

$620.00

This is the stadard version of CRUISER 12-314, but without the internal T-Class fuse. For those, who want to use battery fuses on a busbar or MRBF fuse on the terminal of the battery.

CRUISER 12-314 is the most compact, powerful and safe, fully configurable via Bluetooth, waterproof (IP65), 12.8 volts, 314 Ah Marine Lithium (LiFePO4, LFP) battery on the market.

Dimensions: 345 mm (370 mm with handles (length) x 190 mm (width) х 276 (height with terminals)
Net weight: 27.7 kg

Category: Batteries Tags: shop, shop-digital

Description

This is the stadard version CRUISER 12-314, but without the internal T-Class fuse. For those, who want to use battery fuses on a busbar or MRBF fuse on the terminal of the battery.

is the most compact, powerful and safe, fully configurable via Bluetooth, waterproof (IP65), 12.8 volts, 314 Ah Marine Lithium (LiFePO4, LFP) battery on the market.

Equipped with a powerful 300 amp BMS, internal wires of 64-75 mm², and the most modern Active cell balancing function, which provides a balancing current of up to 2 amperes for heavy-duty work in a hot climate. This system ensures the best performance and longevity of the battery cells. The latest generation EVE A-Grade 8,000-cycle cells compressed and fixed in the module are inside. Specially designed for mobile application (Vessels)

The battery can be physically switched on and off using a button located on the battery between the terminals. The button is protected according to the IP65 standard. No extra power consumption when you leave your boat for a long time.

Superior Safety Features
Safety is a top priority for the CRUISER series. Each battery is equipped with high and low-temperature protection, over- and under-voltage, and overcurrent, short-circuit protection, ensuring maximum safety in marine conditions.

Dimensions: 345 mm (370 mm with handles (length) x 190 mm (width) х 276 (height with terminals)
Net weight: 27.7 kg

Additional information

Weight	28 kg
Dimensions	37.0 × 19.0 × 27.3 cm
Technical details	– Capacity: 314 Ah (A-Grade EVE cells) – Voltage: 12.8V – Lithium chemistry: LiFePO4 (LFP) – Cells Life Cycles: 8.000 (0.5P, 25 C, SOH 70%) – Recomended max continues charging and disharging current: 150 A – Max discharging current (short-term: 3 minutes): 300 A – Recommended charging method: CC(Bulk) 13.8-14.0V, CV(Absorption) 13.8-14.0V, Tail current 10-15 amps, Float: 13.48V and below – Maximum charging voltage: 14.6V (3.65V/cell), Tail current 15 amps – Maximum discharging voltage: 10V (2.5V/cell) – Charging temperature: +5-45 degrees Celsius – Recommended cycle using for long time of operation DOD 80 % – Recommended SOC for storaging: 40 %, self-discharge 3% per month – Waterproof class: ip65 (Submersion under water is prohibited) – Dimensions: 345 mm (370 mm with handles (length) x 190 mm (width) х 276 (height with terminals) – Net weight: 27.7 kg
