Marine LFP Battery CRUISER 12-314

$690.00

The CRUISER 12-314 is the most compact, powerful and safe, fully configurable via Bluetooth, waterproof (IP65), 12.8 volts, 314 Ah Marine Lithium (LiFePO4, LFP) battery on the market.

Available on backorder

Category: Batteries Tags: shop, shop-digital

Description

The CRUISER 12-314 is the most compact, powerful and safe, fully configurable via Bluetooth, waterproof (IP65), 12.8 volts, 314 Ah Marine Lithium (LiFePO4, LFP) battery on the market.

Equipped with a powerful 300 amp BMS, internal wires of 64-75 mm², and the most modern Active cell balancing function, which provides a balancing current of up to 2 amperes for heavy-duty work in a hot climate. This system ensures the best performance and longevity of the battery cells. The latest generation EVE A-Grade 8,000-cycle cells compressed and fixed in the module are inside. Specially designed for mobile application (Vessels)

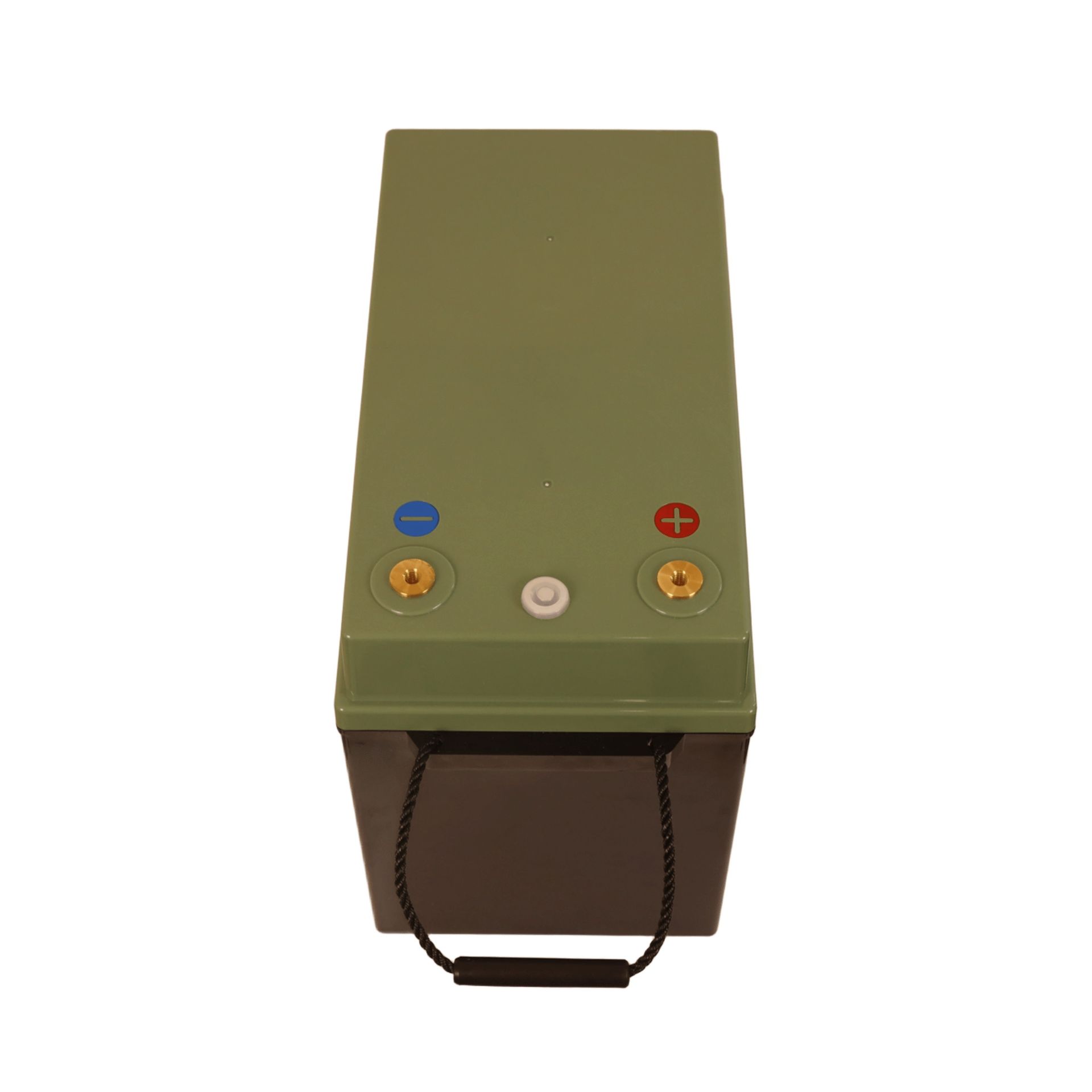

The battery can be physically switched on and off using a button located on the battery between the terminals. The button is protected according to the IP65 standard. No extra power consumption when you leave your boat for a long time.

Superior Safety Features

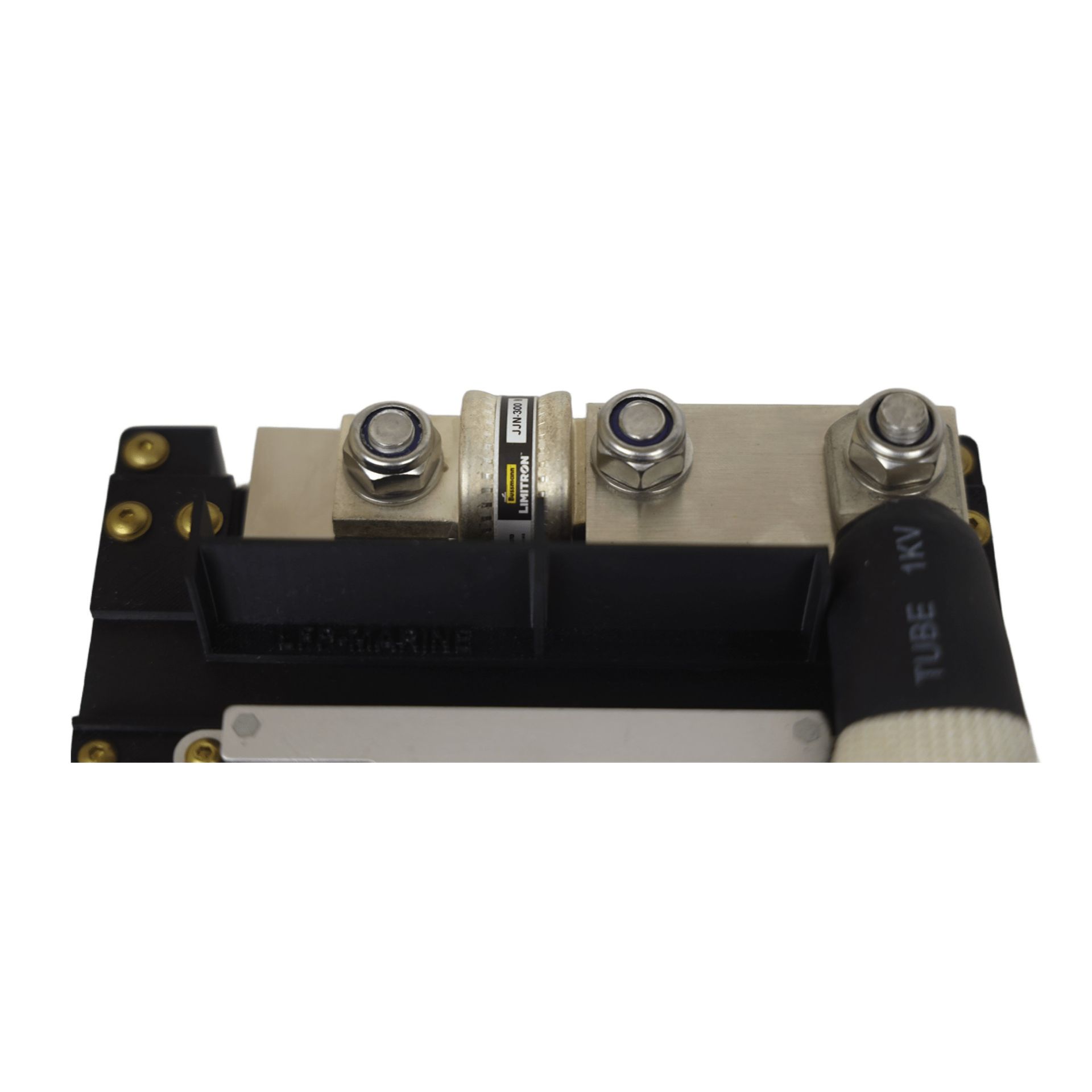

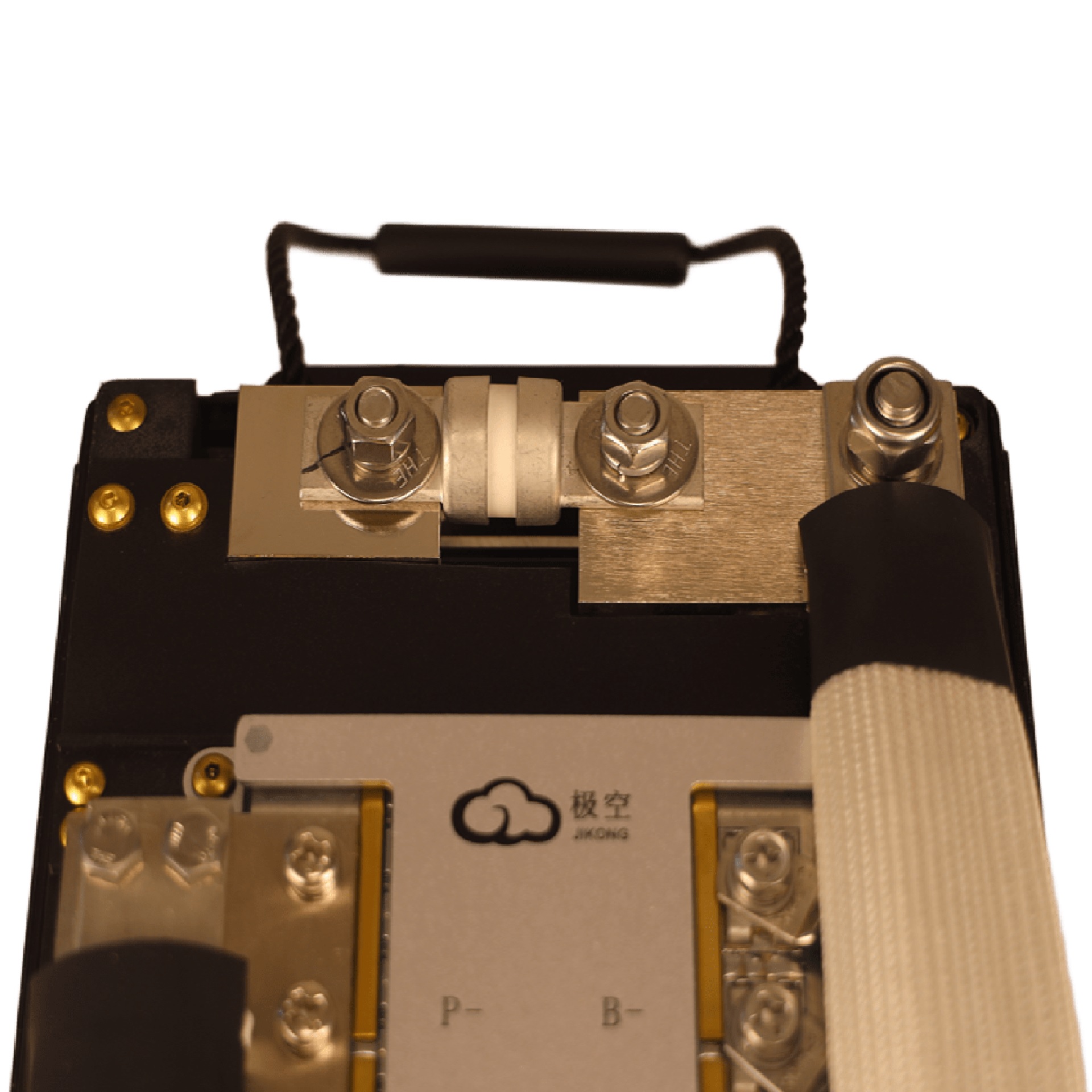

Safety is a top priority for the CRUISER series. Each battery is equipped with the fast current-limiting T-Class fuse. Additionally, high and low-temperature protection, over- and under-voltage, and overcurrent, short-circuit protection, ensuring maximum safety in marine conditions.

Additional information

Weight	28 kg
Dimensions	37.0 × 19.0 × 27.3 cm
Technical details	– Capacity: 314 Ah (A-Grade EVE cells) – Voltage: 12.8V – Lithium chemistry: LiFePO4 (LFP) – Cells Life Cycles: 8.000 (0.5P, 25 C, SOH 70%) – Recomended max continues charging and disharging current: 150 A – Max discharging current (short-term: 3 minutes): 300 A – Recommended charging method: CC(Bulk) 13.8-14.0V, CV(Absorption) 13.8-14.0V, Tail current 10-15 amps, Float: 13.48V and below – Maximum charging voltage: 14.6V (3.65V/cell), Tail current 15 amps – Maximum discharging voltage: 10V (2.5V/cell) – Charging temperature: +5-45 degrees Celsius – Recommended cycle using for long time of operation DOD 80 % – Recommended SOC for storaging: 40 %, self-discharge 3% per month – Parameters of the fuse inside of the battery: 300 Amps DC (T-Class fuse, Eaton JJN-300) – Waterproof class: ip65 (Submersion of power terminals under water is prohibited) – Dimensions: 345 mm (370 mm with handles (length) x 190 mm (width) х 276 (height with terminals) – Net weight: 27.7 kg
