CRUISER 12-314-d

$750.00

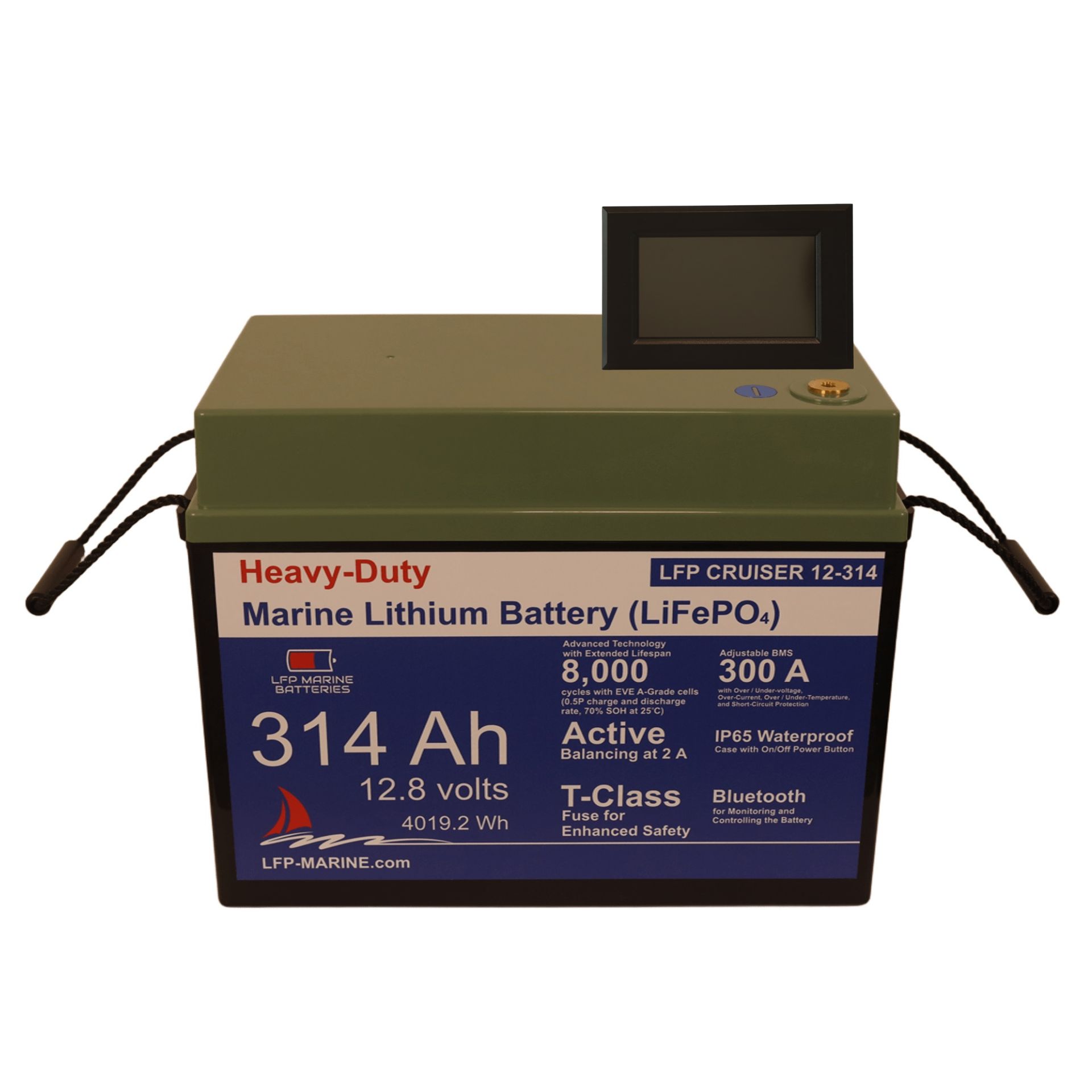

This is the original battery “Cruiser 12-314” plus the 4.3″ touchscreen wall mount display. If you buy the battery with the display, there is no on/off button on the battery. In this case, the display has its own personal button on/off, which must be mounted near the display

Out of stock

SKU: 7888 Category: Batteries Tag: shop-digital

Description

This is the original battery “Cruiser 12-314” plus the 4.3″ touchscreen wall mount display. If you buy the battery with the display, there is no on/off button on the battery. In this case, the display has its own personal button on/off, which must be mounted near the display

Data can be output to the remote personal touchscreen display, providing real-time information at your fingertips. The display is equipped with 10 meters of cable. The battery is connected to the display via a 10-meter cable (the battery side of the cable connection is waterproof IP65). The display should be installed indoors. (It is not waterproof). It allows you to monitor the next parameters: Voltage of the battery and voltage of every cell, actual current, state of charge, and more.

******

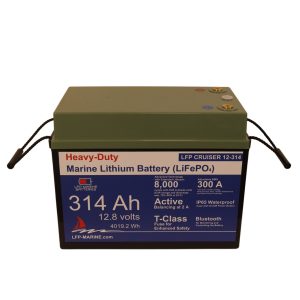

The original CRUISER 12-314 is the most compact, powerful and safe, fully configurable via Bluetooth, waterproof (IP65), 12.8 volts, 314 Ah Marine Lithium (LiFePO4, LFP) battery on the market.

Equipped with a powerful 300 amp BMS, internal wires of 64-75 mm², and the most modern Active cell balancing function, which provides a balancing current of up to 2 amperes for heavy-duty work in a hot climate. This system ensures the best performance and longevity of the battery cells. The latest generation EVE A-Grade 8,000-cycle cells compressed and fixed in the module are inside. Specially designed for mobile application (Vessels)

The battery can be physically switched on and off using a button located on the battery between the terminals. The button is protected according to the IP65 standard. No extra power consumption when you leave your boat for a long time.

Superior Safety Features

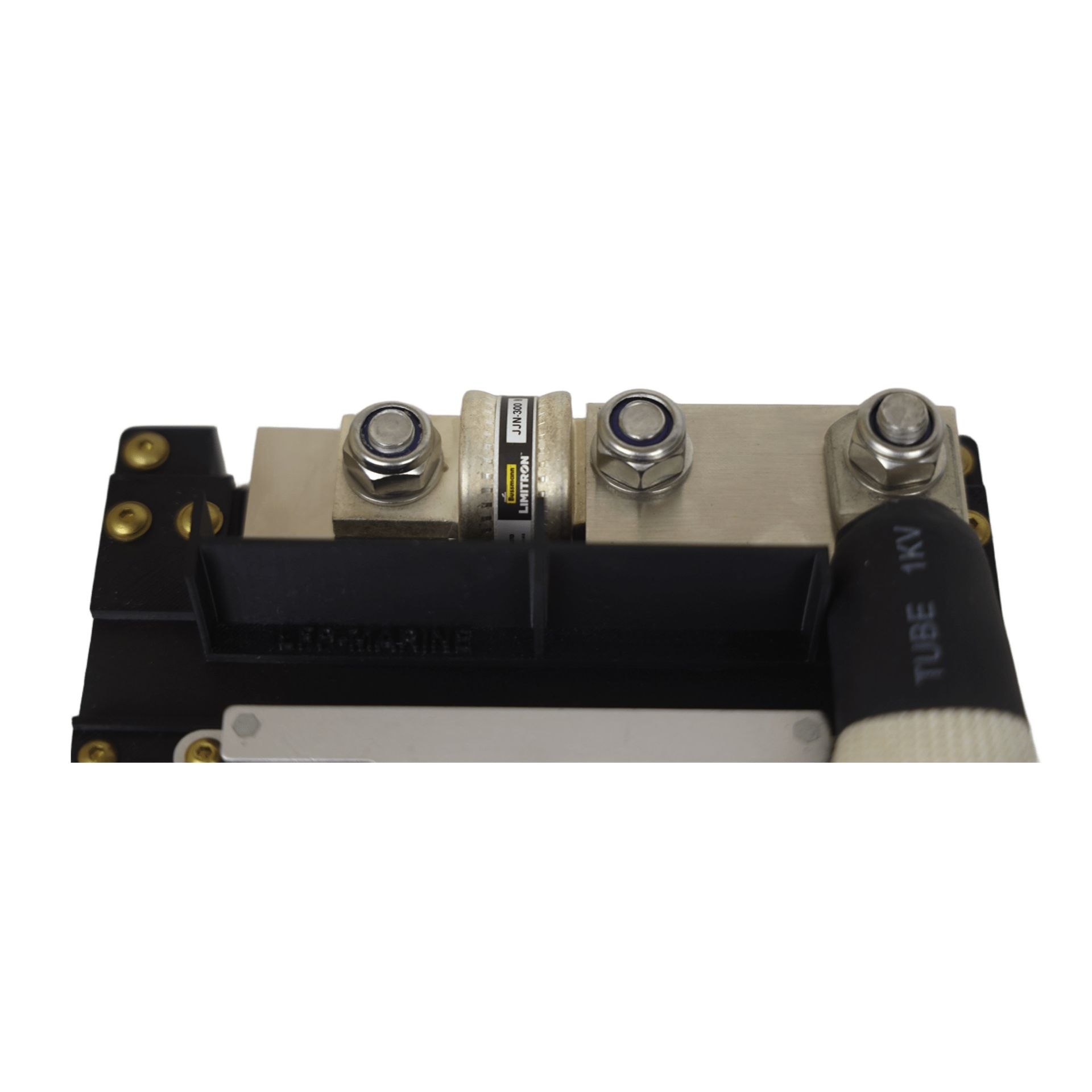

Safety is a top priority for the CRUISER series. Each battery is equipped with the fast current-limiting T-Class fuse. Additionally, high and low-temperature protection, over- and under-voltage, and overcurrent, short-circuit protection, ensuring maximum safety in marine conditions.

Additional information

Weight	28 kg
Dimensions	37.0 × 19.0 × 27.6 cm
Technical details	– Capacity: 314 Ah (A-Grade EVE cells) – Voltage: 12.8V – Lithium chemistry: LiFePO4 (LFP) – Cells Life Cycles: 8.000 (0.5P, 25 C, SOH 70%) – Recomended max continues charging and disharging current: 150 A – Max discharging current (short-term: 3 minutes): 300 A – Recommended charging method: CC(Bulk) 13.8-14.0V, CV(Absorption) 13.8-14.0V, Tail current 10-15 amps, Float: 13.48V and below – Maximum charging voltage: 14.6V (3.65V/cell), Tail current 15 amps – Maximum discharging voltage: 10V (2.5V/cell) – Charging temperature: +5-45 degrees Celsius – Recommended cycle using for long time of operation DOD 80 % – Recommended SOC for storaging: 40 %, self-discharge 3% per month – Parameters of the fuse inside of the battery: 300 Amps DC (T-Class fuse, Eaton JJN-300) – Waterproof class: ip65 (Submersion of power terminals under water is prohibited) – Dimensions: 345 mm (370 mm with handles (length) x 190 mm (width) х 276 (height with terminals) – Net weight: 27.8 kg
